FAI & ISIR Reports
Load a drawing, auto-balloon features, enter or import measurements and generate a complete measurement report with out-of-tolerance flagging.
Instant Measurement Report PRO
From raw measurements to finished reports in minutes.
ImrPRO is the desktop quality suite for inspection teams. Build FAI/ISIR reports, run SPC capability studies, perform Gauge R&R, and keep every gauge in calibration — all in one place.
- FAI & ISIR
- SPC · Cpk / Ppk
- AIAG MSA Gauge R&R
- Calibration
- Workload planning
Stop re-typing data
Import CMM and vision-system output and let the engine clean, map and validate it.
Stop juggling spreadsheets
Reports, capability studies, gauge records and schedules live in a single database.
Stop guessing on quality
Cpk/Ppk, ANOVA and tolerance checks update live as measurements change.

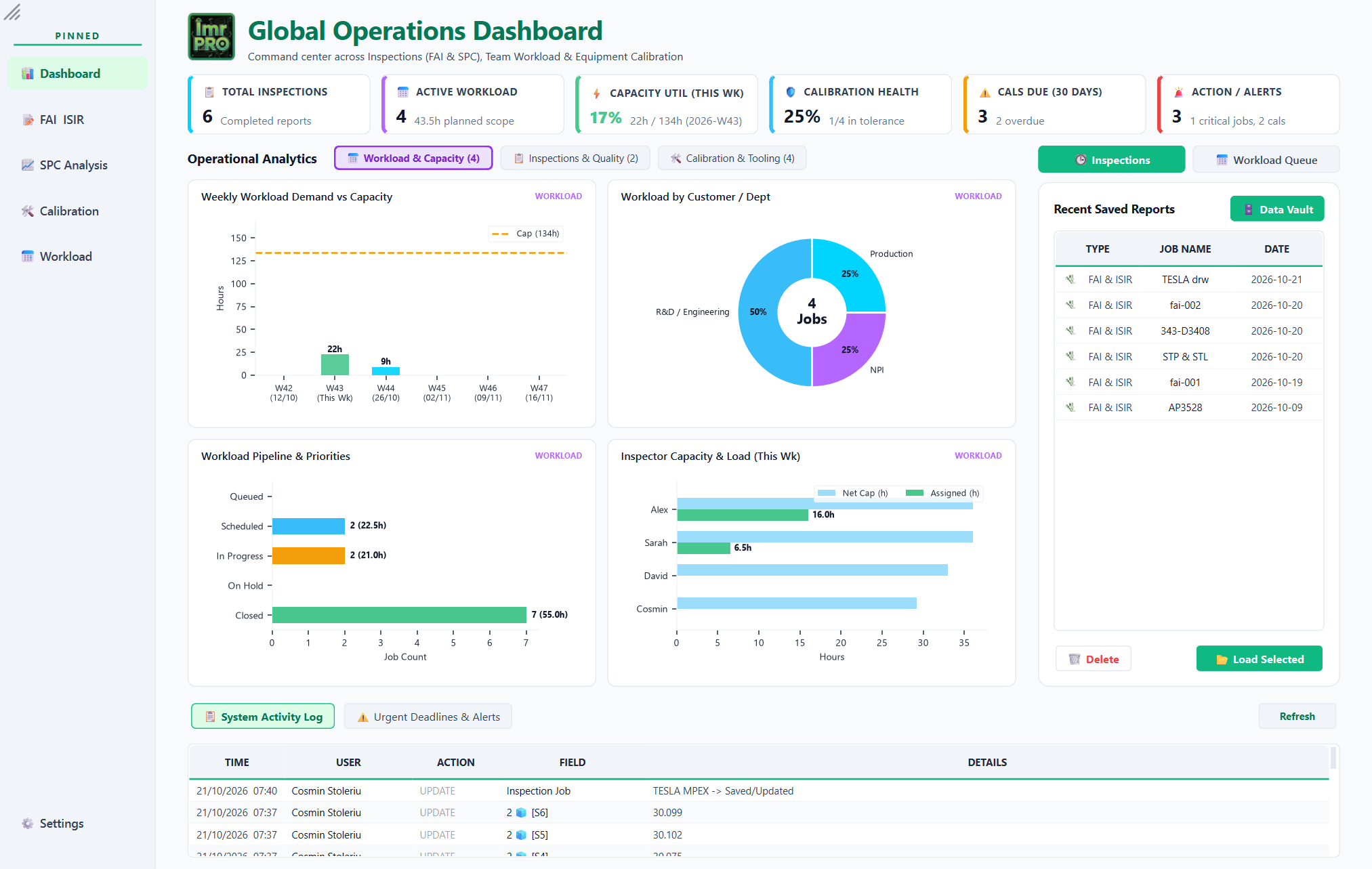

Everything in one suite
One suite. One source of truth.
Each module shares the same job data, equipment records and users, so nothing is entered twice.
SPC Analysis
Guided wizard for Cpk/Ppk, histograms and subgroup analysis. Pull from saved jobs, import external reports or paste raw data.
Gauge R&R
AIAG MSA 4th Edition–compliant studies with two-way ANOVA, X̄-R charts, %GRR, %P/T and NDC — with an instant pass / marginal / fail verdict.
Calibration Management
Equipment master, due-date calendar, reminders, recall notices, quarantine and audit-ready PDF reports for every gauge and tool.
Workload & Capacity
Plan inspection jobs against team capacity. See weekly demand, resource load and the mix of FAI, SPC and metrology work.
2D / 3D Metrology
Work on the drawing in 2D, 3D or split view and compare CAD against scan data with a deviation view.
In action
Built for the way inspection actually works

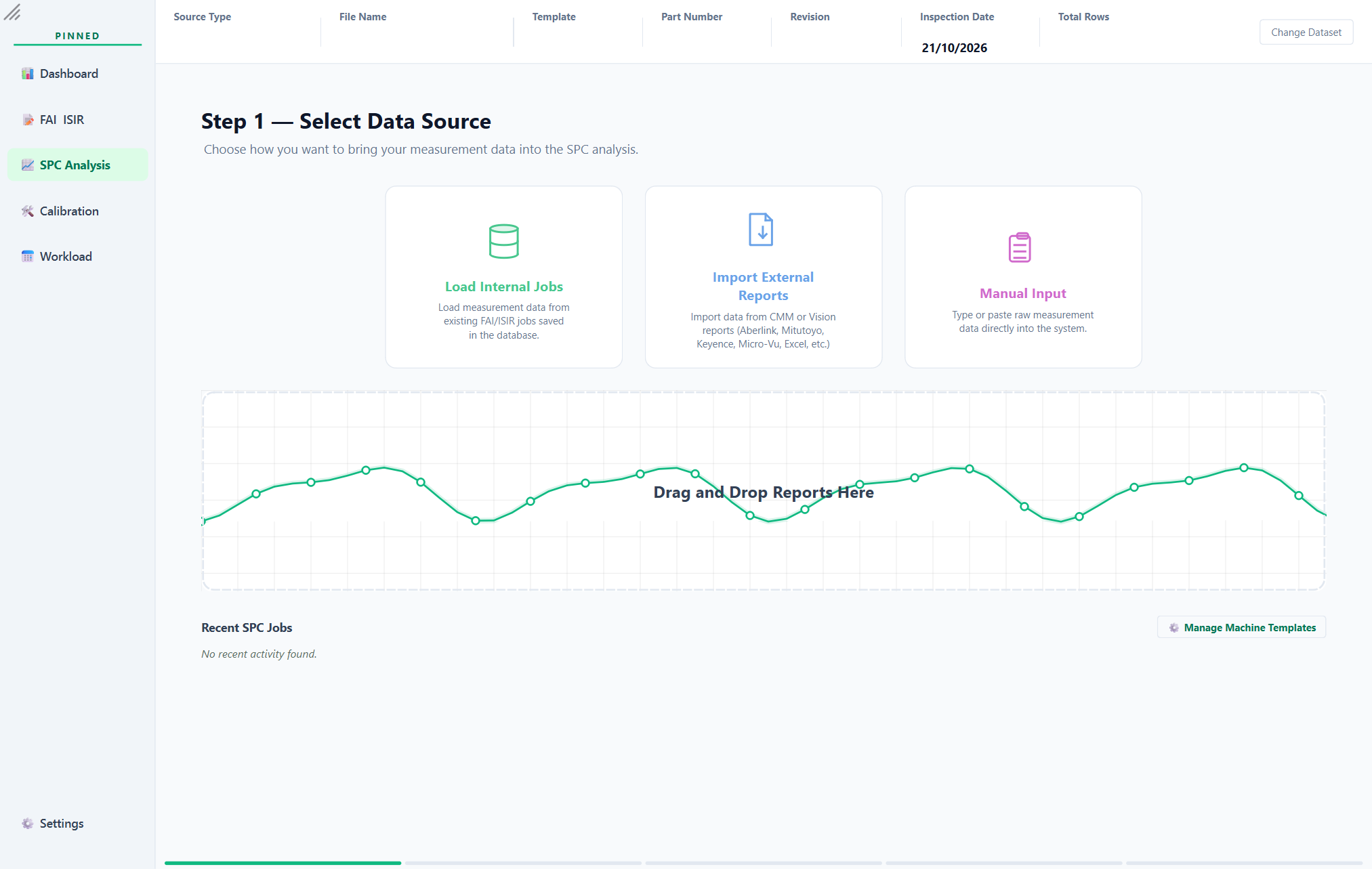

A guided SPC wizard
- Load internal FAI/ISIR jobs from the database
- Import CMM or vision reports — drag and drop
- Or paste raw measurement data directly
- Reusable machine templates for repeat formats

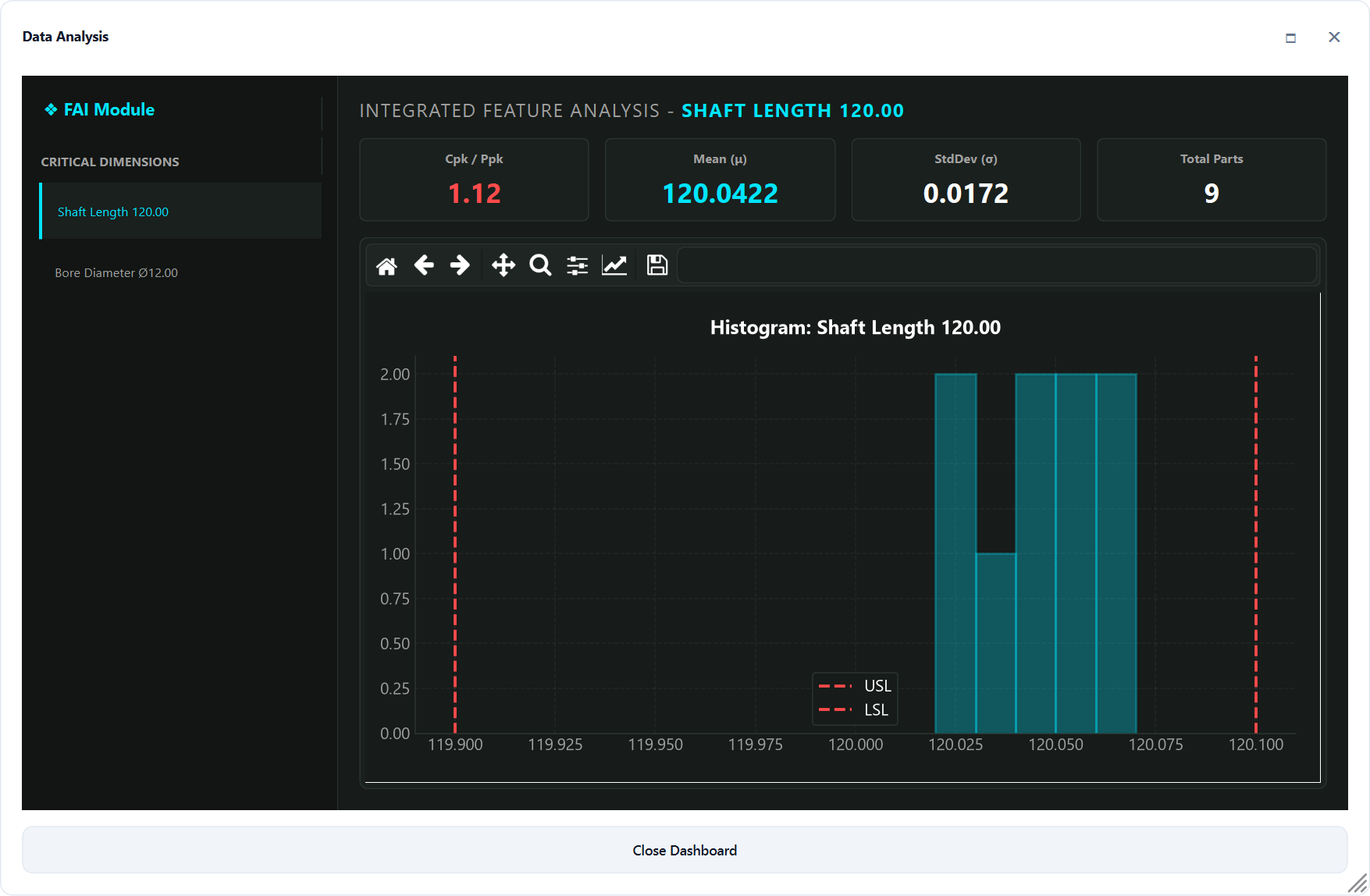

Capability, live in the report
- Cpk / Ppk, mean and standard deviation per feature
- Histogram with USL / LSL limits
- Jump between critical dimensions instantly
- Opens right from the FAI session

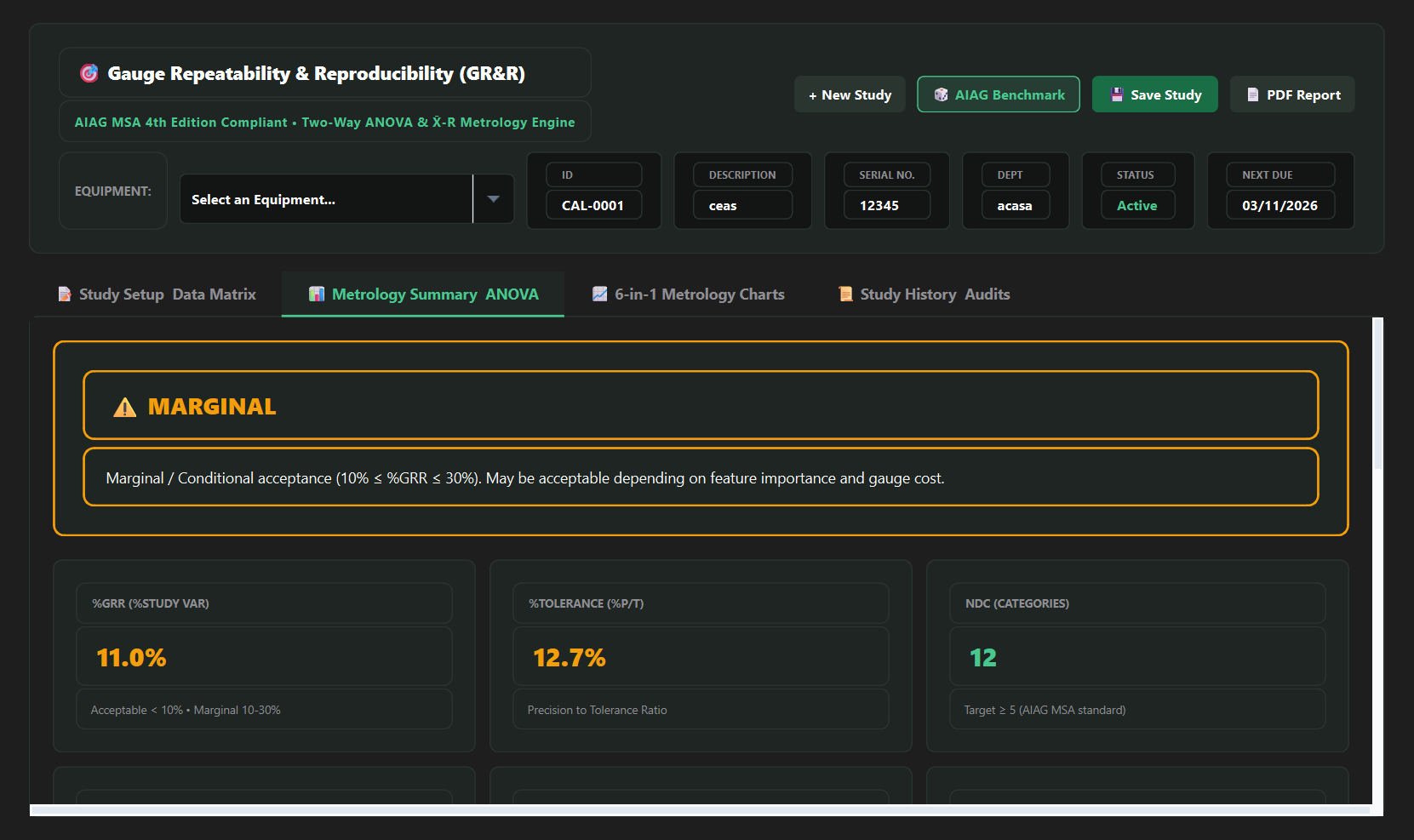

Gauge R&R without the spreadsheet
- Paste trials straight from Excel into the data matrix
- Two-way ANOVA and X̄-R metrology engine
- %GRR, %Tolerance and NDC against AIAG limits
- 6-in-1 charts and PDF report

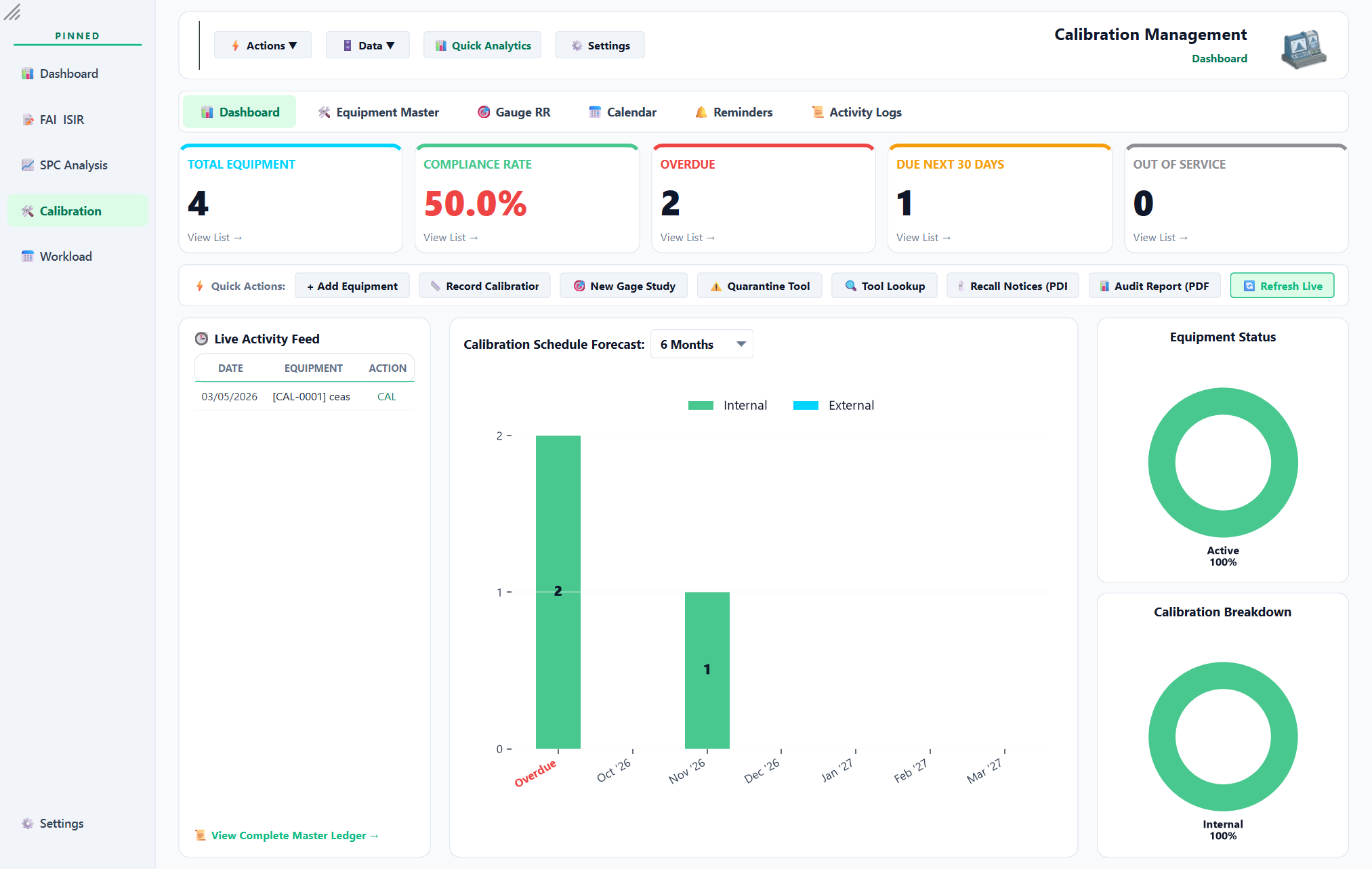

Know the state of every gauge
- Compliance rate, overdue and due-in-30-days at a glance
- Forecast calibration workload by month
- Quick actions: record calibration, quarantine, recall notices
- Audit report export (PDF)

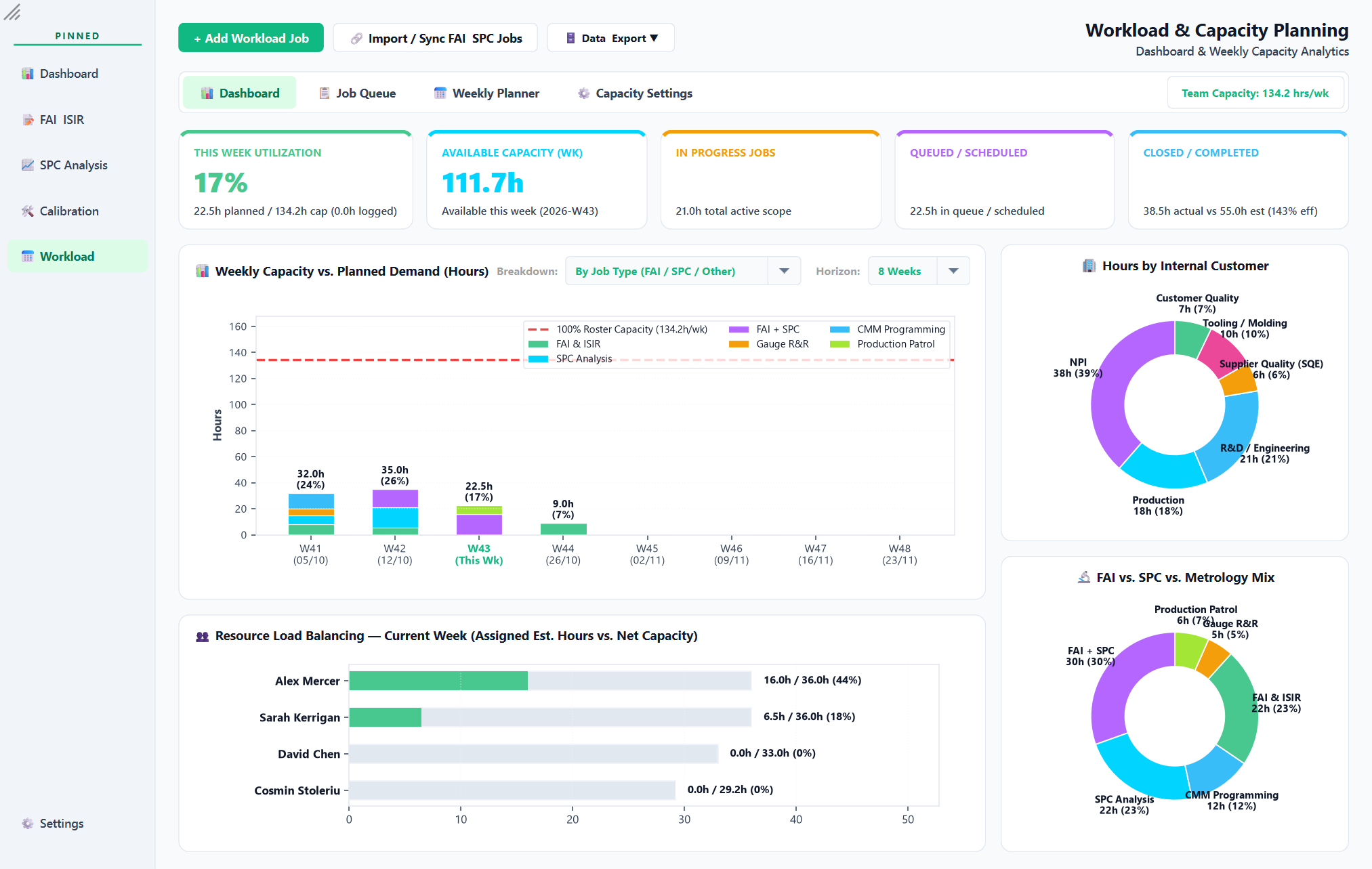

Plan the lab, not just the parts
- Weekly capacity versus planned demand
- Resource load balancing per inspector
- Hours by internal customer and by job type
- Sync FAI and SPC jobs into the queue
How it works
Drawing in. Report out.
-
1
Set up the job
Enter part, revision and inspector details, then load the customer drawing.
-
2
Balloon the drawing
Annotate features by hand or use Auto-Balloon. Draw a box to OCR a dimension straight off the print.
-
3
Bring in measurements
Type them in, or import CMM / vision output. Tolerances are checked and auto-corrected as you go.
-
4
Review & report
Check capability, flag out-of-tolerance features and export the finished measurement report.
Smart import engine
Messy files in. Clean data out.
CMM output is rarely tidy. ImrPRO uses a central parsing engine so each machine format stays simple and the heavy lifting is done once — and done right.
- Fuzzy header matching maps columns even when names differ between machines
- Number scrubbing strips stray text and symbols so the math never breaks
- Encoding detection reads files regardless of how they were saved
- Tolerance auto-correction — geometric callouts (e.g. Position, Flatness) get a 0 lower limit; one-sided tolerances are mirrored
- No silent failures — empty or corrupt files trigger a clear warning, never a crash
Works with your measurement systems
ZeissFAROPC-DMISMitutoyo
AberlinkKeyenceMicro-VuExcel
Brand names are trademarks of their respective owners and are used only to describe file compatibility.
Why ImrPRO
Quality software that respects the shop floor
Desktop-fast
A native Windows application — no browser lag when you're balloon-ing a 40-page drawing.
Local data
Jobs, equipment and logs are stored in your own database, with a full activity trail.
Won't crash on bad data
Imports are validated up front, with clear warnings instead of silent failures.
Modern interface
A clean, consistent UI with light and dark work areas designed for long inspection sessions.
FAQ
Common questions
What does ImrPRO run on?
ImrPRO is a Windows desktop application distributed with a standard installer.
Which file formats can I import?
Reports from CMM and vision systems (including Zeiss, FARO, PC-DMIS, Mitutoyo, Aberlink, Keyence and Micro-Vu), as well as Excel data. Tell us about your format in the demo request and we'll confirm support.
Does the Gauge R&R follow a standard?
Studies follow the AIAG MSA 4th Edition approach, using two-way ANOVA and the X̄-R method, with the standard acceptance bands for %GRR and NDC.
Can I save and reopen jobs?
Yes. Jobs are saved with their full setup, balloons, tables and metadata, and can be reloaded from the Data Vault at any time.
Does it work offline?
Yes — the application and its database run locally on your machine.
See ImrPRO on your own data
Tell us about your inspection workflow and we'll set up a walkthrough.
